Ice Bar Machine/Ice Cube Machine/Big Ice Cube Machine

Block iceBlock ice has big size but smaller contact area with the air, it is no easy to melt, quite conenient for delivery and storage. Also,block ice can be crushed to glanular by using a ice crusher, widely used in fishery industry, vegetable & fruits farm, mine and chemical factory...ect.For our direct cooling machine, ea

Featured Products

Block ice

Block ice has big size but smaller contact area with the air, it is no easy to melt, quite conenient for delivery and storage. Also,block ice can be crushed to glanular by using a ice crusher, widely used in fishery industry, vegetable & fruits farm, mine and chemical factory...ect.

For our direct cooling machine, each ice block weight can be 5kg to 100kg, ice size can be customized.

Ice Bar Machine/Ice Block Machine/Big Ice Cube Making Machine

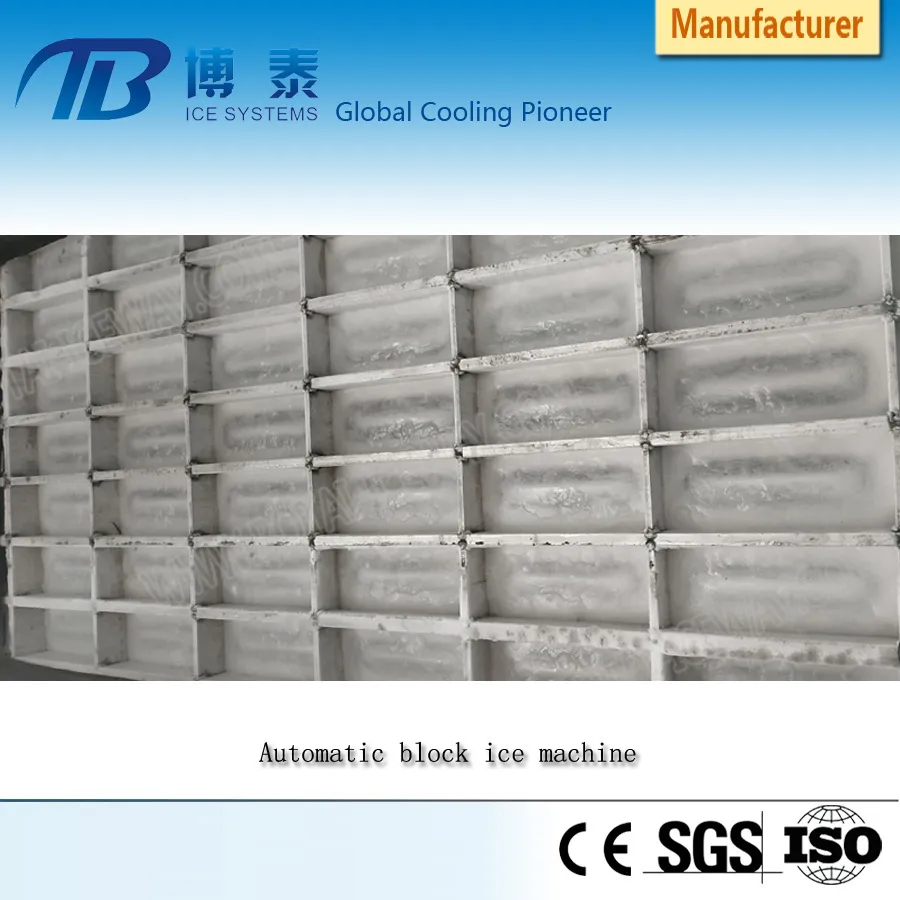

BOTAI automatic block ice machine

Automatic direct cooling block ice machine is kind of new tech compared to traditional brine cooling machine, there is no need salt water as heat-conducting medium, the refrigerant evaporating directly inside the aluminum alloy ice moulds. Fast freezing time, up to 30% energy saving, the ice are sanitary and even good for human consumption. The machine using hot Freon gas to defrost the ice, lifting system can discharge whole batch of ice in one time, no need much labor cost, small room space occupation. Full automatic PLC control system simplify the daily operation, very human-friendly. Most components we using are world famous brand like BITZER/HANBELL,DANFOSS,LG(LS),SCHNEIDER,REFCO and WEINVIEW…ect,machine quality is highly guaranteed, life-span can even reaches 15 years.


BOTAI capacity 15 tons direct cooling block ice machine--Model:BTDB-4T

Ice Bar Machine/Ice Block Machine/Big Ice Cube Making Machine

Ice Bar Machine/Ice Block Machine/Big Ice Cube Making Machine


BOTAI direct cooling block ice machine series
ModelDaily CapacityCompressorRefrigerantCooling ModeInstall Power
BTDB-5T5T/24hrsPiston BITZERR22/R404aWater cooling21.4kW
BTDB-8T8T/24hrsScrew HANBELLR22/R404aWater cooling33.7kW
BTDB-10T10T/24hrsScrew HANBELLR22/R404aWater cooling42.6kW
BTDB-15T15T/24hrsScrew HANBELLR22/R404aWater cooling59.2kW
BTDB-20T20T/24hrsScrew HANBELLR22/R404aWater cooling78.7kW
BTDB-25T25T/24hrsScrew HANBELLR22/R404aWater cooling96.0kW
BTDB-30T30T/24hrsScrew HANBELLR22/R404aWater cooling121.5kW

BOTAI direct cooling block ice machine advantages
  1. Integral design, moveable, easy installation
  2. Full automatic PLC & touch screen control, easy operation
  3. No need brine water as cooling medium, ice more sanitary
  4. Adopts direct cooling technology, compared with brine cooling machine is 30% energy saving
  5. No need ice thawing tank, ice dumping device and water feeder…else, space saving
  6. Harvesting whole batch of ice in one time, ice trucking system and ice dragging system available, considerable time saving
  7. Perfect combination of high quality components and exquisite production craft, low failure rate, long service life

Ice Bar Machine/Ice Block Machine/Big Ice Cube Making Machine


Machine Installation

BOTAI direct cooling block ice machine can be integral design or split design. For machine capacity lower than 20 tons, we suggest foreign customer to take integral desgin, while for machine more than 20 tons, we will send refrigeration unit and ice evaporator separately to customer's local,then finalize assembling onsite.

Ice Bar Machine/Ice Block Machine/Big Ice Cube Making Machine

Intergal machine installation: we will well completed and test the machine before shipment, the user just need to connect the cooling tower,electric power and water supply, then machine works. The installation work can enve be completed by the csutomer.

Split machine installation: We will send our engineer on site to assist installation, to connect the ice evaporator to refrigeration unit ,vacuumized the system and fill freon gas, till machine being tested alright.

**Need our engineer on site**
1) The customer should provide accommodation, round-trip air tickets and daily subsiby for our technician
2) The customer should provide nacessary tools and backman to assist the installation
3) Installation room place,electric power and water supply should be ready before our technician arriving


BOTAI Company Introduction

Dongguan Botai Refrigeration Equipment CO., LTD (BOTAI for short) is one of the top-rank ice machine manufacturer from China, which focus on research, design, production, sales and after-sales service of various kind of ice making equipments.

BOTAI have a group of high-quality refrigeration and electrical engineers, mechanical engineers, senior mechanics and after-service staff. With fine procession equipment and unremitting innovation efforts, BOTAI able to offer customers the most satisfied ice system solution at good quality and price, also service.

Ice Bar Machine/Ice Block Machine/Big Ice Cube Making Machine

Since our company has been founded, we insist "first grade quality, first grade credibility, first grade service" philosophy.

Botai main product
---Flake ice machine; flake ice machine evaporator
---Direct cooling block ice machine; Brine cooling block ice machine
---Cube ice machine; Tube ice machine
---Water chiller; Cold room
---Other refrigeration parts
