Product Description

Flake ice machine:
The evaporation tank is made of stainless steel or carbon steel chromium upon the user's requirement. The evaporator with flange connection structure, evaporation chamber with ribs spiral groove around the welded structure to enhance inner strength, and the all thickness through strict testing to uniform wall thickness, ensure the sustainable use of the evaporator is not deformed.
The ice PLC controlling system can automatically control the whole progress of procuring ice with alarm of lacking water, full ice, high/low pressure, and motor reverse rotation protection so as to guarantee the machine run stably with less faults.
The scratch-style ice dropping system inside machine ensures constant working with minimum power consumption.
The latest technology allows for highly efficient heating transfer and energy saving.

Flake ice Features:
The thin ice can be directly used for stirring and mixing refrigerated materials;
No acute edges and corners so it will not damage the surface of the cooled object;
Large contact area and fast cooling speed;
Easy to crush and mold.

Model

No.ModelProduction capacityRefrigerating capacityTotal powerCompressorCooling typeIce storage bin capacityIce maker sizeIce storage bin sizePower supplyTotal weight (kgs)
(kgs/24hours)(KW)(KW)(kgs)(mm)(mm)
1JYF-0.2T2001.21.76Danfoss-DenmarkAir cooling100780*750*655790*800*9551P/220V/50HZ115
2JYF-0.5T50032.693001310*890*8051320*1180*1100 3P/380V/50HZ195
3JYF-1T100064.374001310*970*9051320*1250*1100230
4JYF-1.5T150097.084001310*970*9851320*1250*1100350
5JYF-2T2000128.65001500*1095*10501500*1380*1300425
6JYF-2.5T2500159.15001500*1095*12001500*1380*1300470
7JYF-3T30001814.66Manuerop-France5001750*1190*12001500*1380*1300530
8JYF-5T50003023.12Bitzer-GermanWater cooling25001750*1550*16102000*2000*1800765
9JYF-8T80005231.5Bitzer-GermanWater cooling40002530*1830*16952600*2000*2000980
10JYF-10T100006545.5Hanbell-TaiwanWater cooling50002530*1830*18352600*2300*22001540
11JYF-10T100006545.5Bitzer-GermanWater cooling50002530*1830*18352600*2300*22001540
12JYF-15T1500097.564Hanbell-TaiwanWater cooling75003100*2090*18653000*2800*22002120
13JYF-20T2000013075.8Hanbell-TaiwanWater cooling100003695*2090*22353500*3000*25002860
14JYF-25T25000162.597.8Hanbell-TaiwanWater cooling125003695*2090*24854000*3000*25002940
15JYF-30T30000210115.7Hanbell-TaiwanWater cooling150003880*2120*25954000*3500*25003240

JYC-30T-------------JYC100T PLEASE CONTACT US.

Certificate
10 Ton Flake Ice Machine Ice Flake Ice Machine for Fish Ice Flake Machine Factory

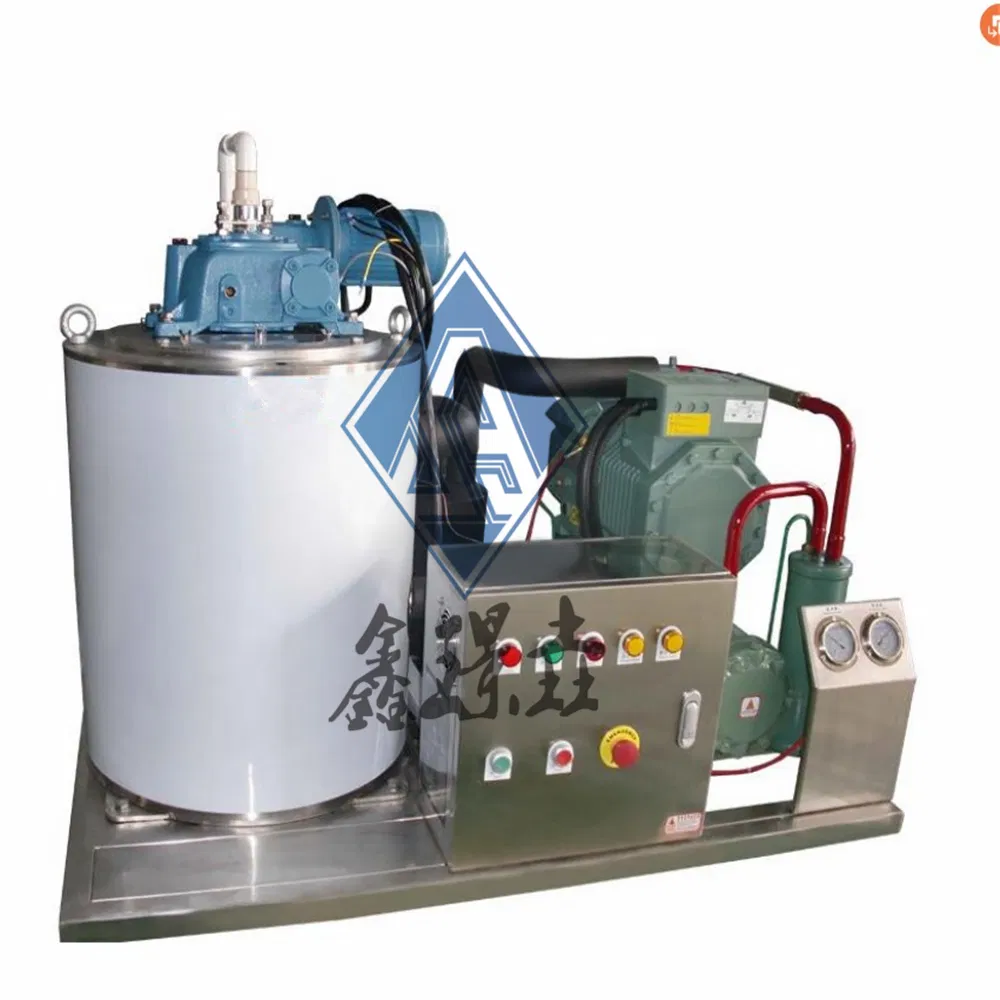

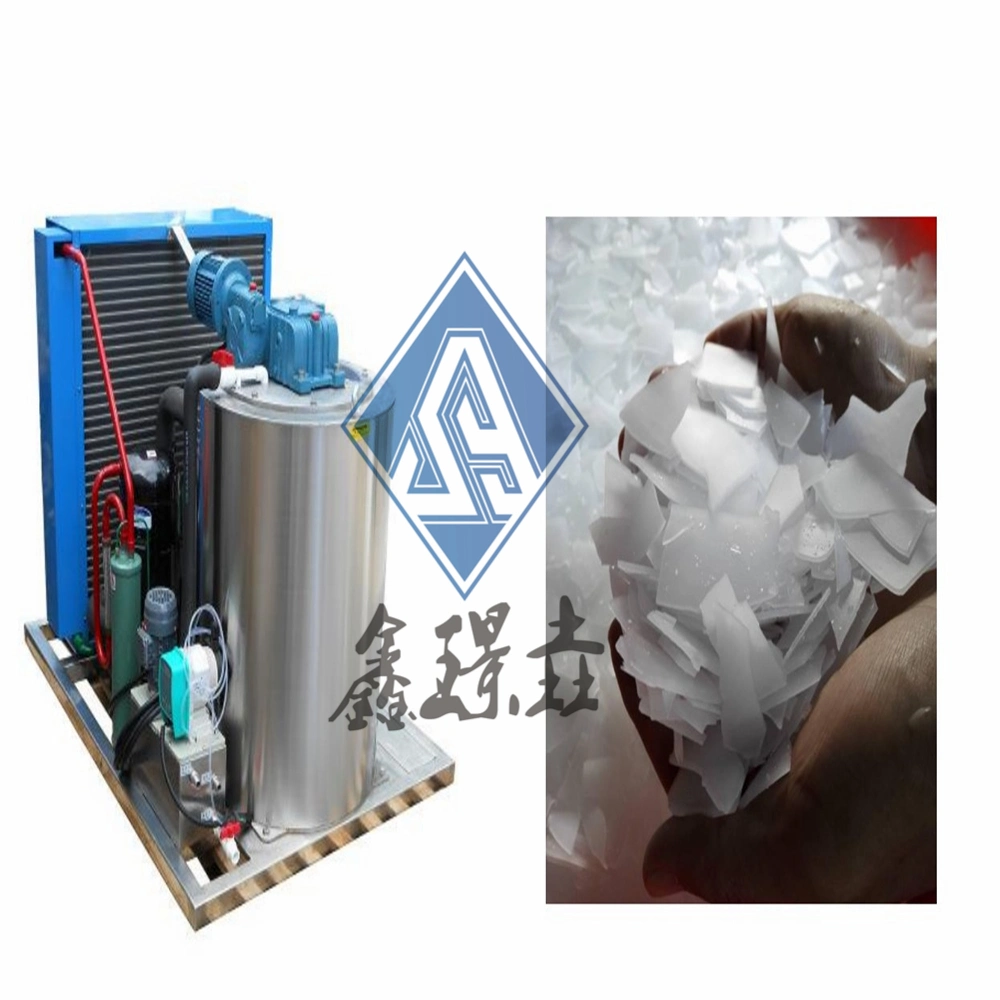

Product pictures
